HN-550 Plus 1080P HDMI COFDM Video Transmitter 20ms Latency 37dBm 5W SMA for UAV Fire Fighting

Basisinformatie
Plaats van herkomst: China
Merknaam: Huanuo
Certificering: CE/FCC/ROHS
Modelnummer: HN-550Plus
Min. bestelaantal: 1 STKS
Prijs: Onderhandelbaar
Verpakking Details: Het professionele pakket van de kartondoos
Levertijd: 2~3 werkdagen
Betalingscondities: T/T
Levering vermogen: 500 stuks per maand
Gedetailleerde informatie
Bedrijfsfrequentie: 2402 MHz - 2482 MHz, in stappen van 1 MHz instelbaar Uitgangsvermogen: 37dBm / 5Watt instelbaar
RF-antenne-interface: SMA Bandbreedte: 2 MHz / 4 MHz / 8 MHz
Encryptie: AES met 128 bits Modulatie: QPSK, QAM16, QAM64
Video -codering: H.264 Video-ingang: Mini HDMI
Videoresolutie: 1080P Full-HD End-to-end latentie: 20ms
Gegevensstroom: Tot 20Mbps adaptief Gegevensinvoer: RS-232 en RS-485, RJ45
Stroominvoer: Gelijkstroom 7~17V Stroomverbruik: 12V_1,5A bij volledige belasting
Afmetingen: 79 mm x 52 mm x 31 mm Gewicht: 160 g
Markeren:

1080P HDMI COFDM transmitter

,

37dBm 5W adjustable output

,

20ms zero latency NLOS link


Productomschrijving

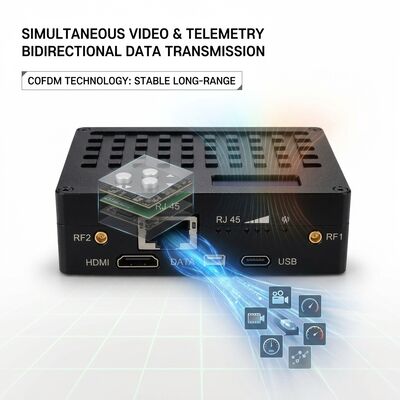

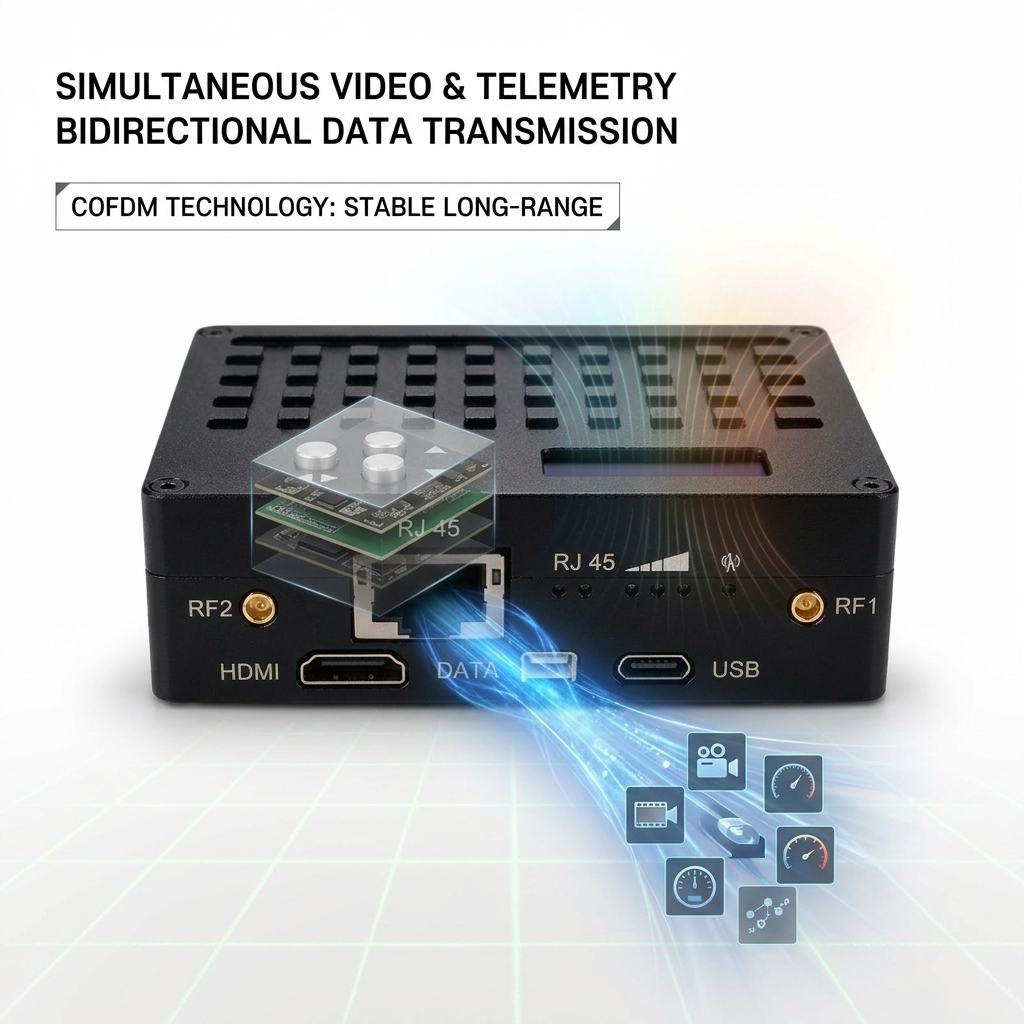

HN-550 Plus 1080P HDMI COFDM Video Transmitter with 37dBm 5W Output Product Introduction: HN-550 Plus is a zero-latency H.264 1080P HD wireless data transceiver built on TDD-COFDM modulation and advanced time division processing. It provides a complete two-way data channel with AES_128 encryption and an ultra-low latency (20ms) high definition video channel, enabling real-time high-speed mobile transmission of data, audio and video in complex non line of sight environments.
